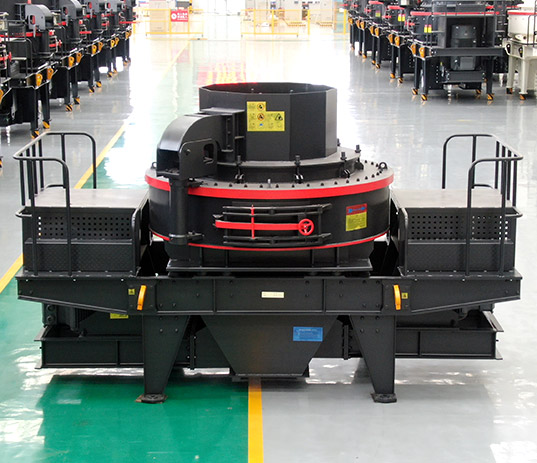

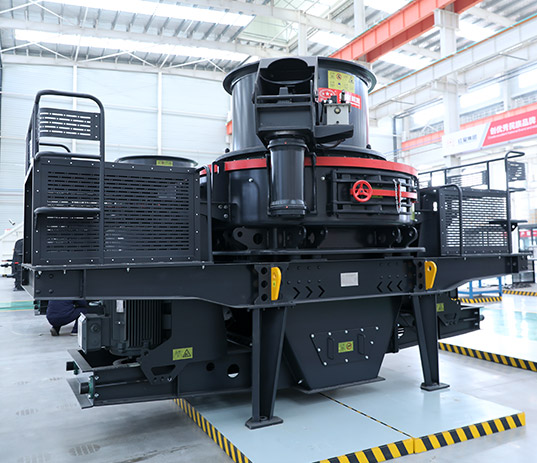

Impact Sand Making Machine: The Core Strength of Sand and Gravel Production Lines

In modern sand and gravel aggregate production and mineral processing, impact sand making machines, with their efficient sand production capabilities and flexible adaptability, have become indispensable core equipment in stone crushing and gravel production lines. Whether used for large-scale production in large-scale stone crushing plants or for refined processing in small and medium-sized sand and gravel yards, their stable performance helps companies achieve efficient output. They also seamlessly collaborate with jaw crushers, cone crushers, vibrating screens, and other equipment to form a complete crushing and sand production system.

1. Unlocking the Structural Secrets of the Impact Sand Making Machine: Precision Synergy for Efficient Sand Making

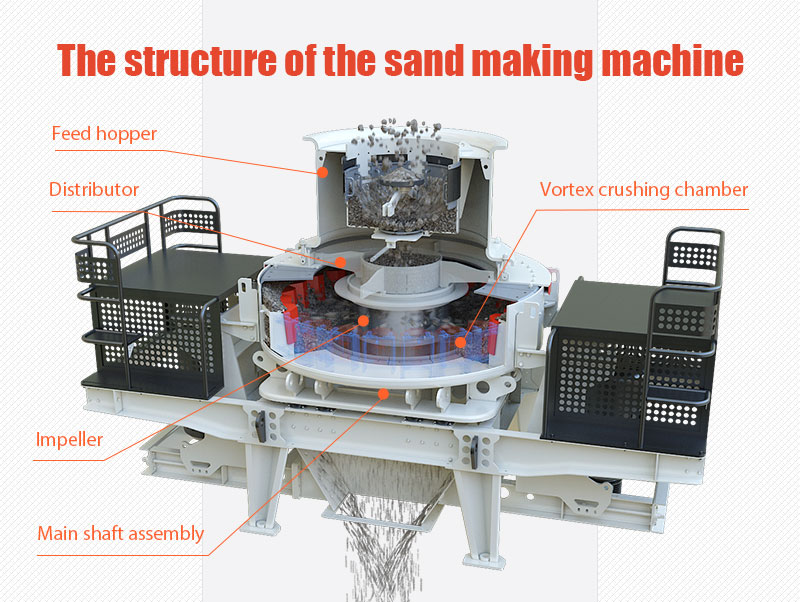

The impact sand making machine's high performance stems from its scientifically designed structure. Its core components are the feed hopper, distributor, vortex crushing chamber, impeller, main shaft assembly, transmission, and lubrication system. These components work seamlessly together to form a complete process: "feed - distribution - crushing - sand making - discharge":

Feed hopper and distributor: After the material is delivered to the feed hopper by a vibrating feeder, the distributor separates the material into two parts. One part enters the vortex crushing chamber for "rock-on-rock" crushing, while the other part enters the impeller for accelerated, graded crushing, effectively preventing material congestion and improving crushing efficiency.

Vortex crushing chamber and impeller: As the core working area of ​​the equipment, the vortex crushing chamber adopts an annular design, forming a closed-loop crushing space with the high-speed rotating impeller. The impeller accelerates the material to a high speed of 60-80 m/s, then launches it into the crushing chamber, where it collides with other materials or the chamber walls. This dual action of "impact and grinding" achieves fine crushing and optimizes particle shape. This process combines the crushing capacity of an impact crusher with the particle shape control advantages of a sand making machine.

Main shaft assembly and lubrication system: The main shaft, serving as the impeller's transmission core, is made of high-strength alloy steel and equipped with high-precision, wear-resistant bearings of the same grade as jaw crusher bearings, ensuring stability at high speeds. Furthermore, an automatic lubrication system provides real-time lubrication to transmission components, preventing high-temperature wear that could affect equipment life. This design aligns with the "low-maintenance, high-reliability" philosophy of intelligent crushing equipment.

II. Multi-Field Application: The Wide Range of Applications of Impact Sand Makers

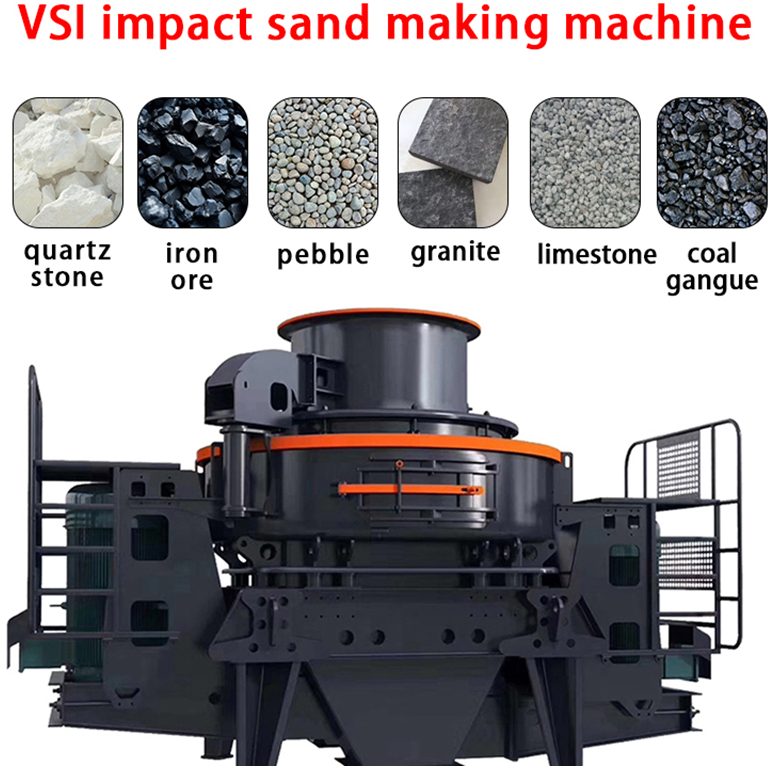

Due to their adaptability to a variety of materials, including granite, basalt, limestone, and river pebbles, as well as their precise control over the finished product particle shape, impact sand makers are widely used in a variety of fields, including construction, road construction, water conservancy projects, mining processing, refractory material production, and glass raw material preparation.

In the resource utilization of construction waste, they can be used in conjunction with construction waste crushers to crush concrete blocks, bricks, and other materials in construction waste into sand, converting them into recycled sand and gravel aggregate for use in the production of products such as recycled concrete and permeable bricks, effectively turning waste into treasure.

In the mining crushing sector, impact sand makers can be integrated with primary jaw crushers and secondary impact crushers for the fine crushing of ores such as gold, copper, and lithium. The ore is then crushed to a particle size that meets beneficiation requirements, providing high-quality raw material for subsequent ball mill grinding.

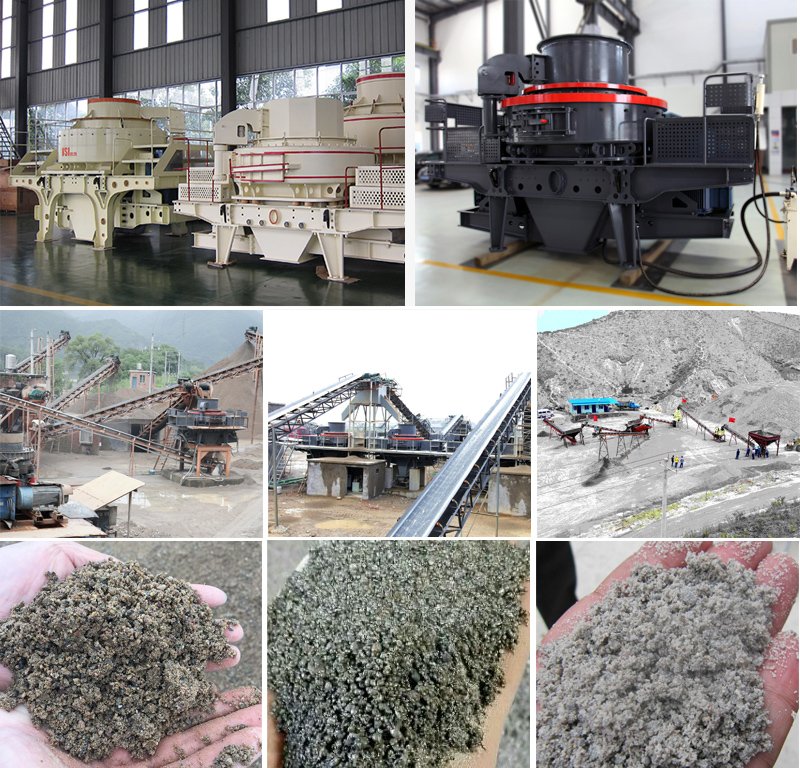

In the production of high-quality sand and gravel, it can produce rounded, well-graded machine-made sand by adjusting the impeller speed and the crushing chamber gap. This can replace natural sand in applications such as high-rise buildings and high-speed rail track slabs, where sand and gravel quality is extremely demanding. When used with a sand washer to remove impurities, the cleanliness and strength of the finished sand and gravel can be further improved.

III. The Key Role of the Sand and Gravel Production Line: Connecting the Past and the Future, Enabling Efficient Production

In a complete stone crushing production line, the impact sand maker does not operate independently. Instead, it is at the core of the "crushing - sand making - screening - conveying" process, playing a crucial connecting role. Its functional value is primarily reflected in three aspects:

By connecting crushing and sand making, achieving "two-in-one machine": At the front end of the production line, after the European-type jaw crusher or hydraulic cone crusher completes the coarse and medium crushing of the material, the impact sand maker can directly perform fine crushing on the medium-crushed material, eliminating the need for additional fine crushing equipment, streamlining the production line process and reducing equipment investment costs.

Optimizing the finished product particle shape and increasing product added value: Compared to the irregular particle shape of the sand produced by traditional hammer crushers, the impact sand maker can achieve this by "stone hitting stone" and "stone hitting iron". Switching between two crushing modes produces sand and gravel with a high cubic content and a low flake content, meeting the particle shape requirements of various projects and making the finished sand and gravel more competitive in the market.

Adaptable to various production line configurations, the impact sand making machine can be flexibly integrated into various scenarios, whether in a fixed jaw crusher plant or a mobile crushing plant for mobile operations. For example, a small impact sand making machine can be integrated into a tracked mobile crusher or a wheel-mounted mobile crusher to achieve "on-site crushing and sand making," significantly reducing material transportation costs. This is particularly suitable for mobile operations such as road repair and tunnel construction.

IV. Our Comprehensive Service Guarantee: From Selection to Operation and Maintenance, Worry-Free Every Step

As a company specializing in the R&D and production of crushing and stone crushing equipment, we understand that "high-quality equipment + comprehensive service" are our customers' core needs. Therefore, we offer full lifecycle support for impact sand making machines:

Pre-sales: Customized solutions and precise selection: Our professional team will provide equipment selection recommendations and production line planning based on the customer's material characteristics (such as hardness and moisture content), production capacity requirements (ranging from 50t/h to 300t/h), and the intended use of the finished product (construction sand, mining powder), incorporating the stone crushing process. For example, we can incorporate a circular vibrating screen for finished product grading, or configure dust-free crushing equipment to meet environmental requirements.

In-sales: Full follow-up to ensure implementation: Customers can visit and inspect the equipment at any time during production. After delivery, we will arrange for technicians to visit and assist with equipment installation and commissioning, and provide guidance on belt conveyor ... The coordinated operation of supporting equipment, such as conveyors and bucket elevators, ensures rapid production line commissioning.

After-sales service: Rapid response and long-term maintenance: If any malfunction occurs, we respond to your after-sales needs within 24 hours.

For customers striving to improve sand and gravel production efficiency and achieve high-quality finished products, the impact sand making machine is more than just a piece of equipment; it's a reliable partner for achieving your production goals. If you have any questions about equipment selection or production line planning, please feel free to contact us and we'll provide you with customized solutions.
