In mining, construction waste recycling, aggregate production, and other fields, traditional fixed crushing plants often face challenges such as high transportation costs, poor site adaptability, and long construction periods. Mobile crushing stations (also known as mobile crushing production lines) perfectly address these challenges by integrating crushing, screening, and conveying functions into a mobile unit. They can crush raw materials such as rock, construction waste, and ore on-site, significantly reducing material transportation costs and improving project efficiency.
Core Advantages: Strong Mobility and Multi-Scenario Adaptability
The greatest strength of mobile crushing stations lies in their exceptional mobility and adaptability to various scenarios, primarily demonstrated through two structural configurations:

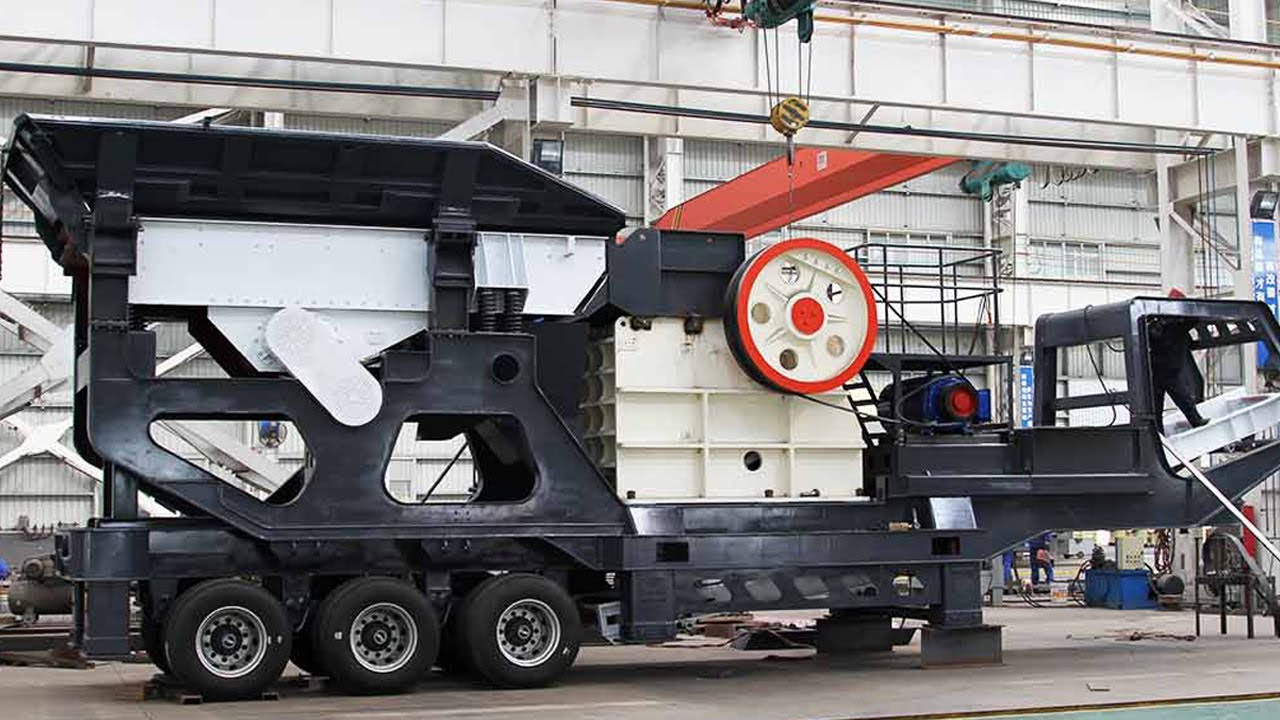

Crawler-type mobile crushers: Equipped with crawler tracks, they can easily traverse complex terrain such as mines, mountainous terrain, and construction waste dumps. Their strong ground adhesion eliminates the need for a roadbed, making them ideal for open-pit mines and remote project sites. Tire-mounted mobile crushers: Driven by tires, they can reach speeds of 20-30 km/h on flat roads. They are suitable for applications requiring frequent short-distance relocation, such as urban construction waste recycling and suburban aggregate production.
Mobile crushing stations can also be flexibly configured based on production capacity requirements: small-scale projects can use a small mobile crusher (with a processing capacity of 10-50 tons/hour), while large-scale mines or aggregate production bases can use a large-capacity mobile crushing station (with a processing capacity of 200-500 tons/hour). Mobile crushing station rental services also provide a cost-effective solution for temporary or short-term projects.
Core Configuration and Workflow: Integrated High-Efficiency Crushing Equipment

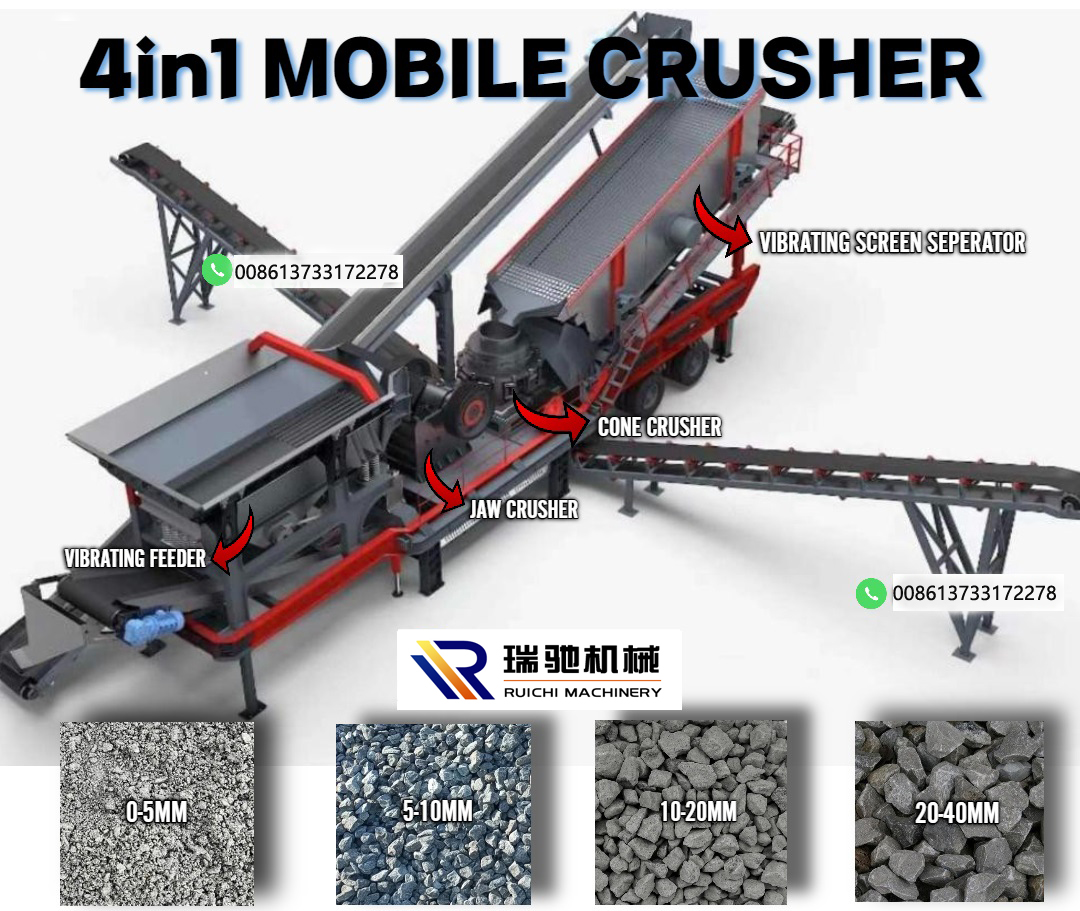

A standard mobile crushing station consists of four core functional modules: feeding, crushing, screening, and conveying. Each module is equipped with specialized equipment to ensure stable and efficient operation:
Feeding System: Equipped with a vibrating feeder, it evenly conveys raw materials (such as rock and construction waste) to the crushing unit. The feeder's adjustable vibration frequency prevents material blockage and ensures continuous feeding. Crusher: As a core component, the crusher selection should be based on the required hardness and particle size of the raw material.
For primary crushing, a jaw crusher (such as a European jaw crusher or a hydraulic jaw crusher) is typically used. European jaw crushers feature a larger feed opening and higher crushing efficiency; hydraulic jaw crushers support automatic discharge adjustment, making them suitable for handling large materials (up to 800mm). Key components such as the jaw crusher liner and jaw crusher toggle plate are made of high-manganese steel, offering excellent wear resistance and a long service life.
For secondary and fine crushing, an impact crusher (such as a primary impact crusher or a secondary impact crusher) or a cone crusher (such as a hydraulic cone crusher or a multi-cylinder hydraulic cone crusher) can be used. Impact crushers are suitable for brittle materials such as limestone, resulting in a fine-grained finished product; cone crushers are suitable for hard materials such as granite, offering high crushing precision. Special Applications: Construction waste recycling requires a construction waste crusher (typically a jaw crusher + impact crusher combination) to separate concrete, rebar, and bricks. Sand production can be paired with a vertical shaft impact crusher (VSI) (also known as an impact sand maker) to process the crushed aggregate into high-quality machine-made sand.
Screening System: Equipped with a vibrating screen (primarily a circular vibrating screen), the crushed material is graded into various sizes (such as 5-10mm and 10-20mm). The screen can be replaced as needed, achieving a screening efficiency of over 95%.
Conveying System: Belt conveyors are used to transport raw, intermediate, and finished materials. Some larger models are also equipped with a bucket elevator to lift materials to a high-level silo, optimizing production line layout. Market Value and Application Scenarios
Due to their flexible application features, mobile crushing stations have become core equipment in the global sand and gravel crushing equipment market, primarily used in the following scenarios:
Mining Crushing Equipment: In open-pit mines (such as iron and limestone mines), they can crush large ore on-site, reducing raw ore transportation costs by 40%-60%. They are often paired with rock crushers and mining crushing equipment to form a complete on-site crushing production line.
Construction Waste Recycling: In urban renewal projects, construction waste (such as concrete blocks and bricks) can be crushed into recycled aggregate for use in the production of permeable bricks and backfill materials, achieving resource recycling and reducing landfill pressure.
Aggregate Emergency Production: In tight deadlines such as road construction and water conservancy projects, temporary aggregate production lines can be quickly established, enabling on-demand sand and gravel production.
Sand Making: In combination with sand washers and VSI sand making machines, they can produce high-quality manufactured sand on-site, addressing the shortage of natural sand resources in many locations. Maintenance and After-Sales Support
To ensure long-term stable operation of mobile crushing stations, regular maintenance is crucial:
Maintenance of key components: Replace wearing parts such as jaw crusher bearings and impact crusher hammers according to the maintenance manual. Regularly check the tension of the conveyor belt and the lubrication of the reducer.
Professional Support: Most jaw crusher and cone crusher manufacturers (such as Henan Ruichi Mining Crushing Equipment) provide customized solutions, on-site installation guidance, and spare parts (such as jaw crusher accessories and cone crusher liners).
In summary, mobile crushing stations are not only "mobile workshops" for crushing operations but also key equipment driving the crushing industry's transformation towards intelligent, environmentally friendly, and flexible operations. Whether it's rock crushing in mines, recycling urban construction waste, or producing aggregates for infrastructure projects, they provide efficient and cost-effective solutions.
