Vibrating Screen: The Core of Efficient Screening in Sand and Gravel Crushing Lines

In stone crushing and sand making lines, material grading and screening is a critical step in determining both finished product quality and production efficiency. With its stable vibration trajectory and efficient screening capabilities, the vibrating screen has become a core screening device for stone crushing plants, gravel yards, and mining processing companies. It seamlessly collaborates with jaw crushers, impact crushers, impact sand making machines, and other equipment to achieve precise material grading and impurity separation, providing high-quality raw materials for subsequent production processes.

I. Deconstructing the Vibrating Screen: Scientific Design for High-Efficiency

The vibrating screen's efficient screening capabilities stem from its refined structural design and optimal component coordination. Its core components are the screen box, vibrating motor, spring damper, base, screen mesh, feed port, and discharge port. These components work together to form a complete process: "feed - vibrating screening - grading and discharge."

Vibrating Motor and Vibration Track: The device is equipped with a dedicated high-frequency vibrating motor. The rotation of eccentric blocks at each end of the motor generates centrifugal force, driving the screen box in a steady vibration motion (the amplitude is adjustable, typically 3-8mm). This vibration pattern allows the material to move forward in a hopping motion across the screen surface, preventing material accumulation and screen clogging while significantly improving screening efficiency. Compared to conventional screening equipment, screening speed is increased by over 30%.

Screen Box and Screen Design: The screen box is welded from high-strength steel plates and features multiple, removable screens (typically 1-5 layers). Different mesh sizes can be selected based on the required material particle size (e.g., 5mm, 10mm, 20mm, etc.), capable of simultaneously grading materials of various particle sizes. The screen mesh edge features a snap-on design for easy replacement, reducing downtime and maintenance, and is suitable for screening materials of varying particle sizes after stone crusher crushing.

Spring damping device: Highly elastic springs installed between the base and the screen box effectively absorb the impact of the vibrating motor, reducing noise during operation (noise level ≤ 85dB). This also minimizes the impact of vibration on the factory floor and surrounding equipment, extending the service life of the entire production line equipment and meeting the "low noise, low loss" operational requirements of intelligent crushing equipment.

II. Core Advantages: Why Choose a Vibrating Screen? Compared to other screening equipment (such as linear vibrating screens and high-frequency vibrating screens), vibrating screens offer significant advantages in stone crushing equipment systems, meeting screening needs in diverse scenarios:

High screening efficiency and high throughput: The optimized vibration trajectory ensures more even material distribution on the screen surface, increasing the screen contact area. A single device can process up to 10-300 tons per hour (depending on the model). This adapts to the discharge screening needs of large-capacity mobile crushers and European-type jaw crushers, avoiding production line congestion caused by screening delays.

High screening accuracy and precise grading: By adjusting the vibration motor speed and eccentric block angle, the material residence time on the screen surface can be precisely controlled, ensuring accurate separation of materials of different particle sizes. For example, in subsequent screening in an impact sand making machine, 0-5mm, 5-10mm, and 10-20mm particles can be separated. The machine-made sand is precisely graded to meet the particle size requirements of various applications, such as construction sand and road sand.

Strong adaptability and high durability: The screen box and screen mesh are made of wear-resistant steel and polyurethane, which can withstand the friction and impact of hard materials such as granite and basalt. The equipment is also dust- and water-resistant. Whether screening mixed materials after processing by construction waste crushers or screening ore produced by mining crushing equipment, it operates stably with low failure rates.

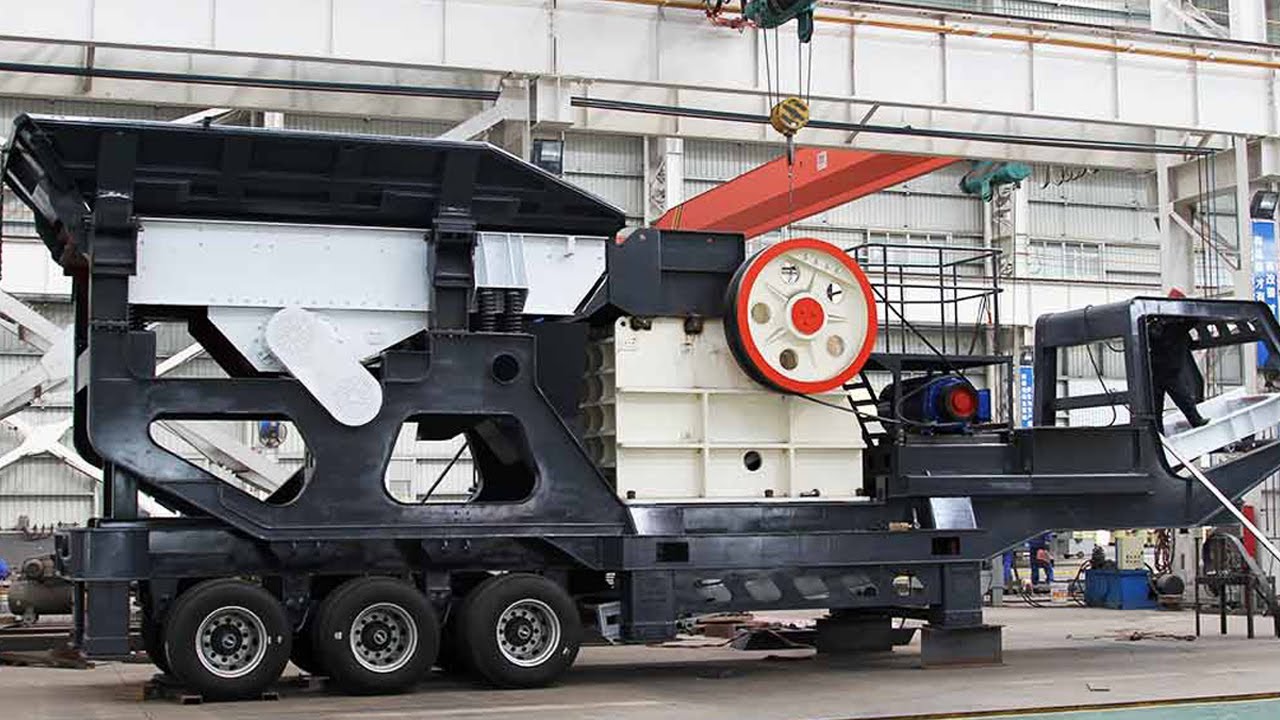

Flexible installation and wide adaptability: The vibrating screen can be used as an auxiliary equipment for fixed jaw crusher plants. It can also be integrated into mobile crushing plants, tracked mobile crushers, and wheel-mounted mobile crushers, achieving "on-site crushing and screening". It is particularly suitable for mobile operations such as road repair and tunnel construction.

III. Multi-Field Applications: Applicable Scenarios for Vibrating Screens

Due to their efficient screening performance and wide adaptability, vibrating screens have been extensively used in a variety of fields, including stone crushing, mining processing, construction waste recycling, and sand making.

In a stone crushing production line: It connects the primary jaw crusher and secondary impact crusher to screen the coarsely crushed material, feeding the material that meets the secondary crushing size to the impact crusher. Material that exceeds the required size is returned to the jaw crusher for re-crushing, forming a closed-loop "crushing-screening-recycling" process and improving crushing efficiency.

In a sand making production line: It is installed after the impact sand making machine and used in conjunction with a sand washer. In construction waste recycling, the sand-making material is first graded through a vibrating screen to remove unqualified large particles. The qualified material is then sent to a sand washer for impurity removal and cleaning, ultimately producing highly clean, well-graded machine-made sand.

In construction waste recycling, it works in conjunction with a construction waste crusher to screen crushed construction waste (concrete blocks, bricks, and rebar mixtures), separating recycled aggregate of varying particle sizes from impurities (such as rebar and plastic). The fine aggregate can be used in recycled concrete, while the coarse aggregate can be used for roadbed filling, achieving resource recycling.

In mining processing, it is used for pre-processing and screening of ores such as gold, copper, and lithium, separating mined ore into ore of acceptable particle size and bulk waste rock. The qualified ore is then fed into a ball mill for grinding and beneficiation, while the bulk waste rock is directly discarded, reducing the ball mill's processing load and lowering beneficiation costs.

IV. Synergy within the Production Line: Connecting the Past and the Future to Ensure Smooth Production

In the complete stone crushing process, the vibrating screen does not operate independently; rather, it is at the core of the "crushing-screening-conveying" process, playing a key role in connecting the past and the future and optimizing production:

Connecting crushing equipment to improve crushing efficiency: In the primary crushing stage, the material crushed by the European-type jaw crusher is conveyed to the vibrating screen via a vibrating feeder. After screening, qualified material is directly fed into the hydraulic cone crusher for secondary crushing, while unqualified material is returned to the jaw crusher for secondary crushing. This avoids over-crushing and under-crushing problems and improves the processing efficiency of the crushing equipment.

Optimizing product quality and increasing product added value: In the sand making stage, the impact sand making machine After being graded by a vibrating screen, the produced material can be precisely separated into finished sand of varying particle sizes (e.g., fine sand, medium sand, and coarse sand). This meets the differentiated sand and gravel particle size requirements of various projects, such as construction, roads, and bridges. It also removes dirt and impurities from the material, improving the cleanliness of the finished sand and making the product more competitive in the stone crushing equipment market.

The vibrating screen's discharge port seamlessly integrates with conveying equipment such as belt conveyors and bucket elevators, allowing the graded material to flow directly to the next stage (e.g., sand washing machine or finished product silo) via the conveying equipment, eliminating the need for manual transfer. This enables continuous, automated production line operation, reduces labor costs, and mitigates production safety risks.

V. Our Comprehensive Service: From Model Selection to Operation and Maintenance, We Provide Comprehensive Support

As a company specializing in the R&D and production of crushing and screening equipment, we understand the importance of vibrating screens to production lines. Therefore, we provide comprehensive lifecycle support to ensure worry-free production for our customers:

Pre-sales: Customized Model Selection to Fit Production Needs: Our professional technical team will recommend suitable vibrating screen models (such as the 3YK1230 and 2YK2460) based on your material characteristics (such as hardness, moisture, and particle size), production capacity requirements (5-300 t/h), and production line configuration (fixed plant/mobile crushing plant), along with your stone crushing process. We also provide production line layout solutions, such as pairing with dust-free crushing equipment for environmentally friendly production or integrating with a hybrid mobile crusher. Meeting mobile operation needs;

During the sales process: Full follow-up to ensure smooth production commissioning: During the equipment production process, customers can visit and inspect at any time to understand the production progress and quality. After delivery, we arrange for a professional installation team to assist with on-site equipment installation and commissioning, guiding customers to familiarize themselves with the equipment operating procedures and adjusting the operating parameters for coordination with upstream and downstream equipment (such as crushers and conveyors). This ensures rapid production line commissioning and shortens the trial production cycle.

After-sales: Rapid response and spare parts guarantee to eliminate production interruptions: If equipment problems arise, we will respond to after-sales needs within 24 hours and promptly resolve any emergencies. To address customers' pain points of "long wait times for spare parts and significant production downtime losses," we have established three major spare parts storage warehouses nationwide. We stock a wide range of commonly used vibrating screen parts, including screen mesh, shock absorber springs, and vibrating motor bearings. Orders can be shipped from the nearest warehouse, with standard spare parts shipped within 48 hours, minimizing production line downtime caused by spare parts shortages.

A vibrating screen is more than just a screening device; it is a core component that improves production line efficiency and ensures the quality of finished products. If you have any questions about vibrating screeners, purchasing accessories, or planning your production line, please feel free to contact us. We will provide you with customized solutions to help you maintain your leadership in the stone crushing industry.
