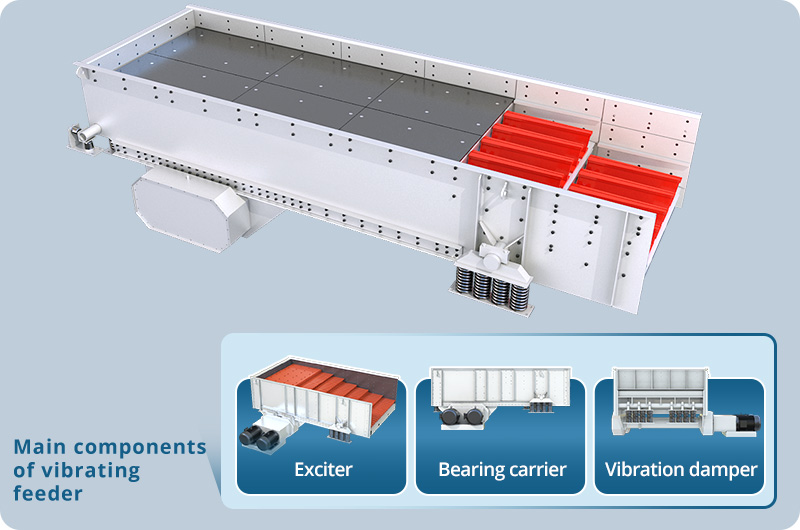

Vibrating Feeders: The Material Transport Cornerstone of Sand and Gravel Crushing Lines

In stone crushing production lines, mining crushing equipment, and even construction waste recycling processes, the smooth transfer of materials from the raw material silo to processing equipment is essential for continuous production line operation. As key equipment connecting raw material storage with core processing, vibrating feeders precisely match the feeding requirements of equipment such as jaw crushers, cone crushers, and vibrating sieves. Whether handling large ore, wet and sticky materials, or fine particles, they deliver uniform and on-demand material flow, completely eliminating the problems of material jamming, overloading, and uneven conveying associated with traditional feeders and laying a solid foundation for efficient operation of the entire production line. I. Core Functions: Three Advantages Solve Conveying Challenges

Vibrating feeders have become the "mainstay" of conveying in the sand and gravel crushing industry due to their three core, purposefully designed functions that directly meet the actual needs of production:

Uniform conveying and protection of downstream equipment

Traditional belt feeders are prone to "piling" or "breakage" when conveying bulk materials, leading to frequent overload shutdowns of European-type jaw crushers and hydraulic cone crushers. This can lead to wear of the jaw crusher liners and cone crusher liners, or even motor burnout. Vibrating feeders use low-frequency vibration (15-30Hz) to keep the material moving at a constant speed along the trough, keeping the feed rate error within ±5%. This ensures that impact crushers and impact sand making machines are always operating at full capacity without overloading, reducing equipment downtime by over 40%.

Flexible Control to Adapt to Different Capacities

Whether the production capacity is 10-50 tons/hour for a small-scale ball mill or 300-800 tons/hour for a large-capacity mobile crusher, vibrating feeders can quickly adjust the feed rate by adjusting the angle of the vibration motor's eccentric block. For example, in a stone crushing plant, processing granite in the morning (requiring low-speed conveying to prevent material jamming) and switching to limestone in the afternoon (high-speed conveying for increased efficiency) can be accomplished in just 5 minutes without changing equipment, adapting to the flexible production needs of the production line.

Adaptable to Multiple Materials, Handling Complex Working Conditions

For handling large rocks (such as basalt) with a particle size of ≤800mm, the vibrating feeder utilizes a U-shaped, wear-resistant trough (made of Q355ND steel) to prevent material deformation due to impact. When handling wet, sticky construction waste with a moisture content of 15%-25%, the anti-stick coating (made of polytetrafluoroethylene) inside the trough prevents material adhesion. For dust-prone limestone powder, the feeder can be equipped with a closed cover and linked to dust-free crushing equipment to control dust concentration below 5mg/m³, balancing different materials and environmental requirements.

II. Application Scenarios: Covering Four Core Crushing Areas

Due to their strong adaptability, vibrating feeders have been deeply integrated into various sand and gravel crushing scenarios, becoming standard equipment for diverse production needs:

Stone Crushing Production Line: Front-End Raw Material Conveying

In granite and marble crushing projects, vibrating feeders are installed between the raw material silo and the primary jaw crusher to evenly convey bulky raw materials to the coarse crushing equipment, preventing imbalances in the crushing chamber caused by uneven raw material size.

Mineral Processing Process: Pretreatment and Conveying

In gold and copper ore beneficiation projects, vibrating feeders convey mined ore to a vibrating sieve for classification. Qualified ore is then fed into a ball mill for grinding. Compared to traditional screw feeders, the stable conveying provided by vibrating feeders reduces ball mill grinding load fluctuations from ±15% to ±2%, increasing mineral processing recovery by 3-5 percentage points.

Construction Waste Recycling: Mixed Material Conveying

When handling mixed construction waste such as concrete blocks and masonry, the vibrating feeder's widened trough (1.5-2m) allows for direct conveyance of mixed materials containing rebar, eliminating the need for pre-sorting.

Mobile Crushing: Flexible Complementary Equipment

For tracked mobile crushers and wheel-mounted mobile crushers used in road repair and open-pit mining operations, small vibrating feeders (weighing ≤ 1.2t) can be directly integrated into the feed port of the mobile equipment. No separate foundation is required, and installation can be completed in two hours. This meets the demand for "on-site crushing and immediate conveying," reducing deployment time by 60% compared to traditional feeding equipment.

III. Production Line Interaction: The Key Link Between Front-End and Back-End

Vibrating feeders don't operate independently; instead, they efficiently collaborate with upstream and downstream equipment to streamline the entire stone crushing process. Three key scenarios exist for this interaction:

"Load Interaction" with Crushing Equipment

The vibrating feeder's control system can be connected to the load sensors of impact crushers and hydraulic cone crushers. When the crushing equipment load exceeds 90%, the feeder automatically reduces speed by 20%. When the load falls below 70%, the feeder automatically increases speed by 15%. This prevents material accumulation or equipment idling, ensuring consistently efficient crushing.

"Coordination" with Screening Equipment

In the closed-loop process of "primary crushing - screening - secondary crushing," if the vibrating screen detects that the material thickness on the screen exceeds 150mm, it immediately sends a signal to the vibrating feeder, suspending conveying. Feeding is resumed when the material thickness drops below 50mm, ensuring screening efficiency remains above 80% and preventing a decrease in screening accuracy due to material accumulation.

"Seamless Integration" with Conveying Equipment

The vibrating feeder's discharge port can be directly connected to a belt conveyor or bucket elevator. By adjusting the trough angle (0-15°), the material is precisely delivered to the conveying equipment, eliminating the need for manual diversion. For example, in a sand making production line, the feeder conveys the secondary crushed ore to a belt conveyor, which then transfers it to the impact sand making machine. This process eliminates material spillage and reduces material waste.

IV. Our Services: Worry-Free Guarantee from Model Selection to Operation and Maintenance

To ensure customers get the most out of their vibrating feeders, we provide a "full-cycle service" covering every step from equipment selection to daily operation and maintenance:

Pre-sales: Customized model selection tailored to your specific needs

Our professional team will recommend a suitable model based on your material characteristics (hardness, particle size, moisture content), production capacity requirements (10-800 t/h), and production line type (fixed plant/mobile crushing). For example, we might recommend a lightweight model for mobile operations or add an anti-stick coating for high-moisture material needs. We also provide a production line layout diagram to help customers plan equipment installation locations and avoid late-stage modifications.

Post-sales: Fast Delivery and On-site Installation

Conventional vibrating feeders can be produced and shipped within 7 days. After shipment, our technicians will visit you to assist with installation and commissioning, and provide guidance to operators on parameter adjustment and troubleshooting. This ensures that the equipment can be put into production within 3 days of installation, shortening your trial run time.

After-Sales Service: Fast Parts Delivery, Rapid Response

We have four major parts storage warehouses nationwide, stocking a wide range of consumable parts, including vibrating motors, wear-resistant liners, and shock-absorbing springs. Standard parts are shipped within 48 hours of ordering.

Whether it's a fixed stone crushing plant or a mobile crushing plant, a vibrating feeder is a critical component in ensuring smooth material transportation. If you're planning a stone crushing production line or need to replace your feeder equipment, please feel free to contact us. We'll provide you with a customized solution to eliminate material transportation as a production bottleneck.
